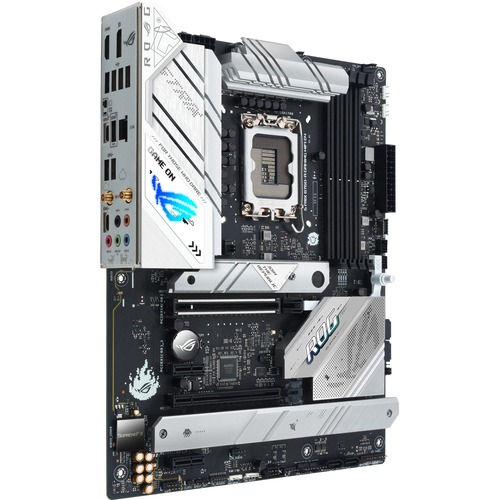

Asus ROG Strix B760-A GAMING WIFI D4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.1
Description
On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
BIOS FLASHBACK™
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A D4 were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast.
POWER ARCHITECTURE
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
OPTIMEM II
OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.
M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
CPU FAN HEADERS
Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.
AIO PUMP FAN HEADER
A dedicated PWM/DC header connects self-contained water-cooling setups.
Specifications
43201513
4.39lb
2.6in
10.7in
13.8in
Yes
7.1
Yes
Bluetooth 5.3
Asus ROG
Asus ROG
Motherboards
Intel
B760
Serial ATA/600
9.6"
Yes
ATX
Yes
Yes
2.1
ASUS Computer International
128 GB
DIMM
2133 MHz
DDR4 SDRAM
3
4
1
3
2
2
4
1
4
2
1
CPU Dependent Video
PCI Express 3.0
12th Gen
Socket LGA-1700
Celeron
Strix
Gaming Desktop Motherboard
Yes
Yes
Yes
6
4
9
1
12"
Yes
IEEE 802.11 a/b/g/n/ac/ax
