Vaddio ClearVIEW HD-20SE 2.1 Megapixel HD Surveillance Camera - Monochrome, Color - 1 Pack - H.264 - 1920 x 1080 - 4.44 mm- 89 mm Zoom Lens - 20x Optical - Exmor CMOS - HDMI - Wall Mount
Description

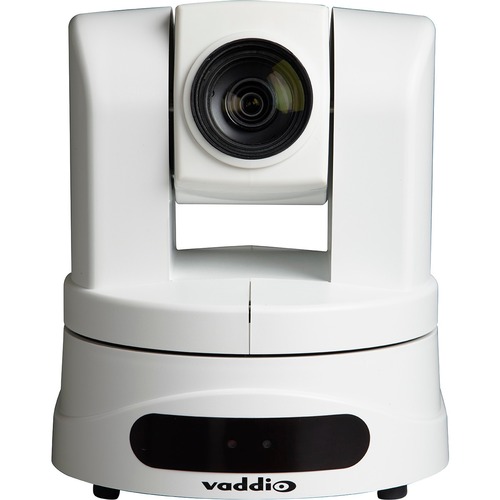

The ClearVIEW HD-20SE HD PTZ Camera combines the best features and functions of the HD-18, HD-19 and HD-20 PTZ cameras. This new PTZ camera features an advanced Image Signal Processor (ISP) and encompasses the innovation of the HD-18, the low light capability of the HD-19 and the Full HD performance of the HD-20 ClearVIEW Camera line.
This camera features native 1080p/60 and uses the latest 1/2.8-type Exmor high speed, low noise CMOS image sensor technology with 2.38 total pixels. The ISP provides fast, razor-sharp auto-focus routines, incredible detail, realistic textures and vivid colors. In addition, the HD-20SE has an impressive low-light performance of 0.3 Lux (color) and 0.03 Lux (B/W)
As the name suggests, the HD-20SE features a 20X optical zoom multi-element glass lens and a 63-degree wide to 3.47-degree tele horizontal field of view. Outputs include simultaneous HDMI, YPbPr and HSDS and support both drop framed and non-drop framed HD video resolutions.
The Quick-Connect™ CCU enables the adjustment of AWB, red and blue gain, brightness, OPWB, gamma, chroma, detail, iris and gain controls with a simple press of a buttom on the Quick-Connect CCU. These controls deliver a more accurate representation of the image that is being captured and the ability to color match and shade multiple cameras. User-defined adjustments can be stored on three Scene-Store buttons.
The Quick-Connect CCU delivers high-quality HD Video, power and control over three Cat. 5 cables up to 500 feet without loss of video quality or latency. Outputs include analog component YPbPr, HDMI and HD-SDI for extreme flexibility in system design and integration. All outputs are live simultaneously.
Specifications
46171610
24lb
15in
23in
23in
Vaddio
Vaddio
Surveillance/Network Cameras
Color
Wired
7.1"
2.1 Megapixel
Yes
Yes
7.8"
Exmor CMOS
Zoom
2 Year
Legrand Group
89 mm
1920 x 1080
4.44 mm
Wall Mount
20x
1
ClearView
ClearView
Surveillance Camera
HD
H.264
5.60 lb
6.7"
