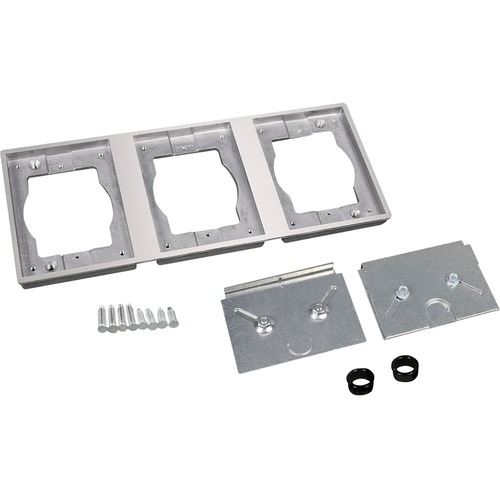

Wiremold Omnibox Series Kit - Brushed Aluminum, Aluminum
Description
OmniBox™ Series Floor Boxes provides an excellent activation solution when multiple services are required in open space areas. OmniBox™ Series Floor Boxes offer one-, two-, and three-gang multi-service boxes that are fully adjustable before and after the concrete pour. Available in both stamped steel and cast iron fabrications, they meet a wide range of workstation requirements for today's and tomorrow's service needs. These floor boxes have many applications, some of which include schools, financial institutions, and commercial office buildings.
Features & Benefits
- Fully adjustable box. Fully adjustable both before and after concrete pour. Reduces installation costs.
- Two Fabrications: Stamped Steel - Lower cost concretetight construction option for above grade applications. Cast-Iron - Watertight construction for on or below grade applications.
- Available in two depths. Economical alternatives when pour depths are limited.
- Flush activation assemblies for carpet and tile. Aesthetically pleasing assemblies are interchangeable in both cast-iron and stamped steel box models.
- Available in one-, two-, and three-gang configurations. Removable dividers increase capacity. More configurations to support multi-service applications.
- Triple service boxes. Accommodates power, communication and/or audio/video devices which reduces the need for multiple boxes.
- Brushed aluminum covers for power applications. 830CK Series Aluminum Covers redesigned to accept threaded conduit when passing through power cables.
- Brass and brushed aluminum covers accept single locking power receptacles. New 828DLR Series provides single flip lid cover.
- 828COMTC Series Cover Kit in brass and brushed aluminum. Allows communication devices to be recessed into 880S and 880CS Series Floor Boxes.
- Partition support kit for 3-gang tile flanges. The 838TAL-880 Series Flanges provide partition supports in tile applications for added strength and durability.
- TopGuard protection. All cover assemblies for the OmniBox Floor Box Series have TopGuard protection. An integral design which keeps out water, dirt, and debris from the power and communication compartments.
- Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2
- Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-ofuse. A wide selection of data and adapter options available for use with Ortronics® TracJack® and Series II devices.
Specifications
Weight
1.95lb
Height
5.25in
Width
3.75in
Length
14.25in
Application/usage
Commercial
Brand
Wiremold
Brand Name
Wiremold
Category
Miscellaneous Devices
Environmental Certification
RoHS
Environmentally Friendly
Yes
Manufacturer
Legrand Group
Manufacturer Part Number
838TAL-880M3
Package Contents
- 838TAL Flange
- 2 x Support Dividers
Product Family
Omnibox
Product Line
Omnibox
Product Material
Aluminum
Product Model
838TAL-880M3
Product Name
Omnibox Series Kit
Product Type
Floor Box
Starting from
$175.82
/ EA
LIST PRICE
$263.93
33%
